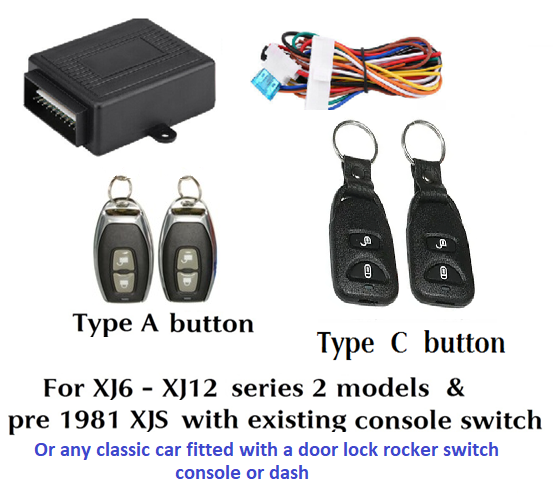

Remote door lock system, comes complete with fitting instructions – 2 x Button controls

& schematic, prewired with fittings for jaguar models listed below, units are also wirelessly pre activated.

AUSTRALIAN SALES: To purchase a unit for your model please email me> jagschemes@live.com.au

Units are $AU50 (includes postage) please quote which button type you want “A” or “C”.

INTERNATIONAL ORDERS are available, please be aware the cost of postage with tracking will be higher

then Australian sales, email me for a quote.

For XJ6 Series 3

Please email me if you have a series 3 with Key lock activator, your system will require Different instructions

REMOTE DOOR LOCK SYSTEM

Special order: If you require a remote system for 2 or 4 door which includes door solenoids (+fittings) control box & Fobs. Email me for a quote.

( quote 2 or 4 door)
